Product parameters:
| Product Name | Single flange level transmitter |
| Medium | steam.gas,liquid |
| Material | SS304/ SS316L/ Carbon Steel |
| Nominal pressure | 0.6~16MPa |
| Connection method | Flange, thread, chuck |
| Differential pressure | calibration range from 0.1kPa to 10MPa; |
| Gauge pressure | calibration range from 0.12kPa to 21MPa |
| Absolute pressure | 1 calibration range from 1.5kPa to 10MPa |
| Pressure type | positive gauge pressure, negative gauge pressure, absolute pressure |

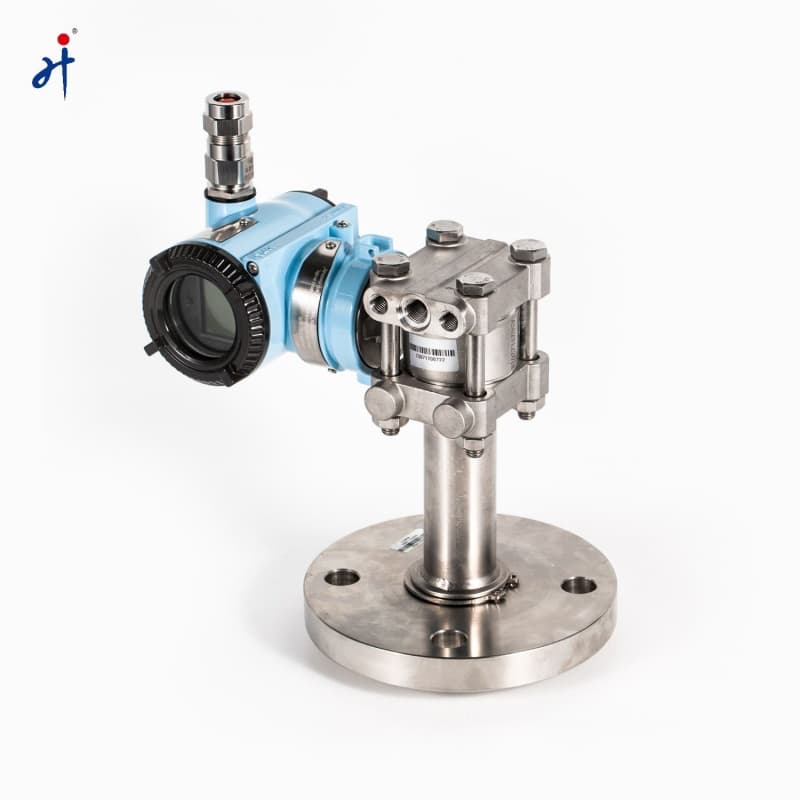

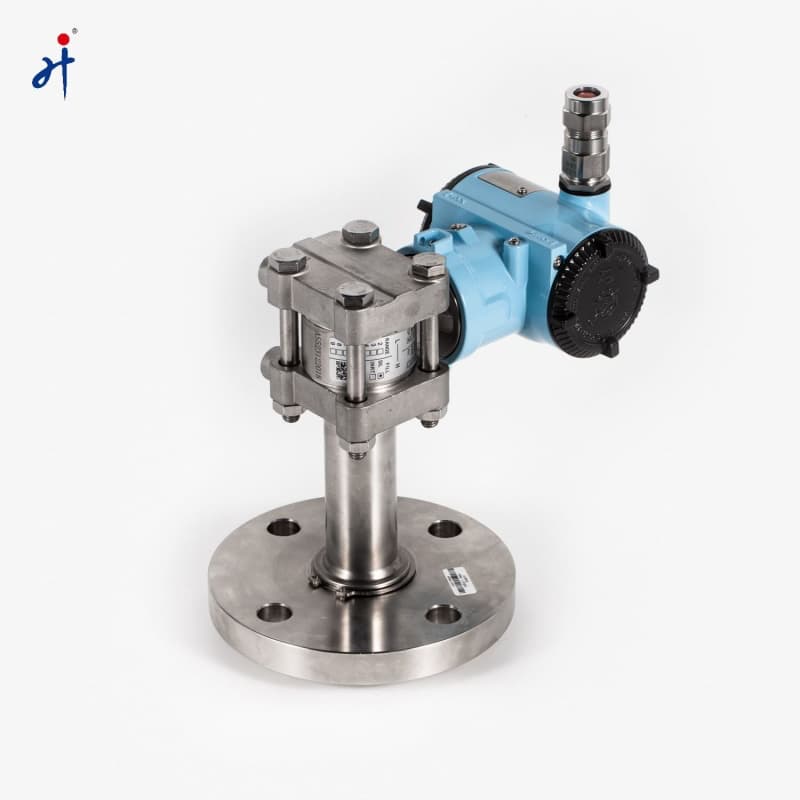

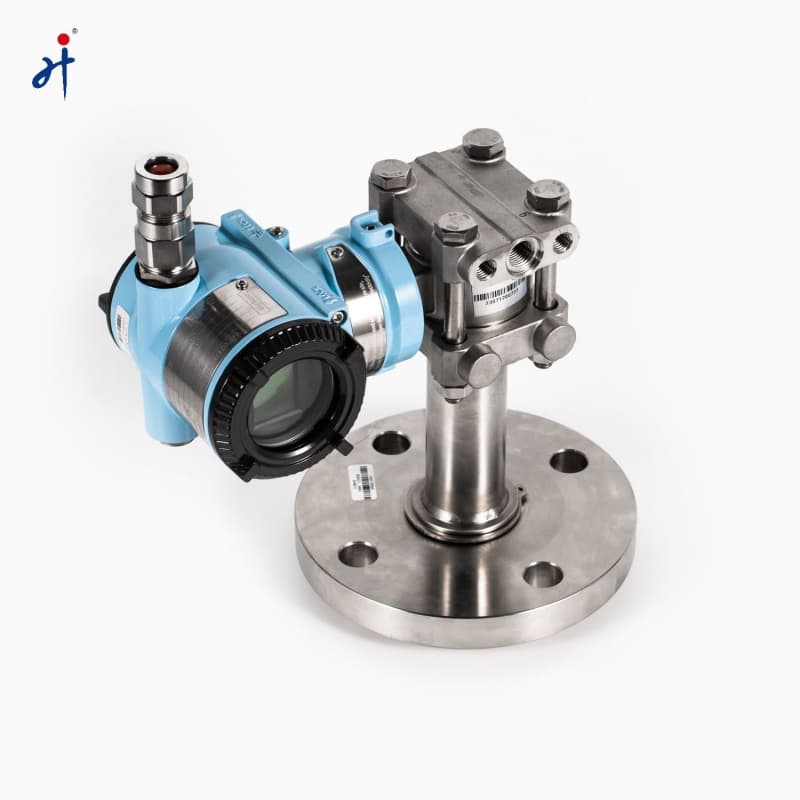

Anhui Hongji (Valvento) Single Flange Mounted Liquid Level Transmitter is an extension and development of pressure transmitter technology. According to the principle that the pressure generated by liquids with different specific gravity at different heights is linearly related, it realizes the volume, liquid height, Accurate measurement and transfer of weight.
Pressure-Based Measurement: The transmitter measures the hydrostatic pressure at the bottom of the tank, which is proportional to the height of the liquid above it.
Output Signal: This pressure is then converted into an electrical signal (usually 4-20 mA) that corresponds to the liquid level in the tank.
Mounting Location: Flange-mounted transmitters are typically installed at or near the bottom of tanks or vessels, where the pressure measurement is most accurate.
Types of Pressure Level Transmitters:
Differential Pressure Transmitters: Measures the difference in pressure between two points, often used in closed tanks where both top and bottom pressures are monitored.
Gauge Pressure Transmitters: Measures the pressure relative to atmospheric pressure, commonly used for open tanks.
Absolute Pressure Transmitters: Measures the pressure relative to a vacuum, often used for specific high-precision applications.
Applications:
Liquid Level Monitoring: Ideal for monitoring the level of liquids in storage tanks, silos, and process vessels.
Industrial Use: Commonly used in industries such as oil and gas, water treatment, chemical processing, and food and beverage.
High-Pressure Applications: Suitable for use in high-pressure and high-temperature environments.
