Specification:
| Type | Ultra High-Pressure Needle Valve | Net Weight | 1.9kg(1/2”) |
| Body Material | 316L, Alloy | Manufacturing Capacity | 800 pics/Month |
| Type of Connection | Thread/Ferrule | Warranty | 1 year |
| Seal Type | Hard Sealing | Manufacturing | Forging and CNC |
| Packing | PTFE/Graphite | Pressure Range | 10000Psi-60000Psi(690Bar-4137Bar) |
| Media | Liquid, Gas, Steam, Oil | Size Range | 9/16’’-1’’ |
| Graphite | 0°F to 800°F (-17.8°C to 427°C) | PTFE | -100°F to 450°F (-73°C to 232°C) |
Ultra High-Pressure Needle Valves

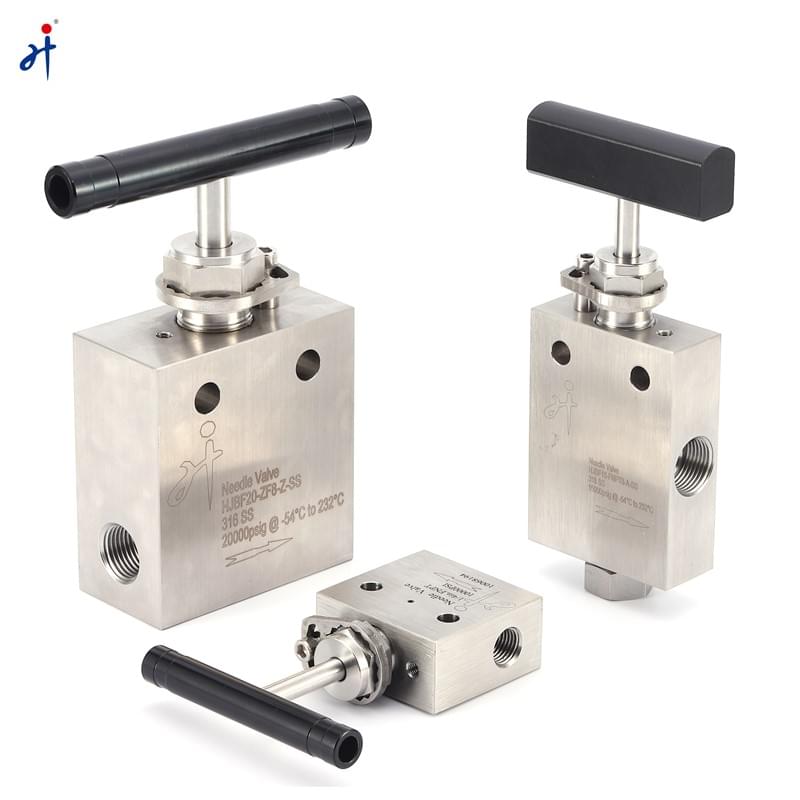

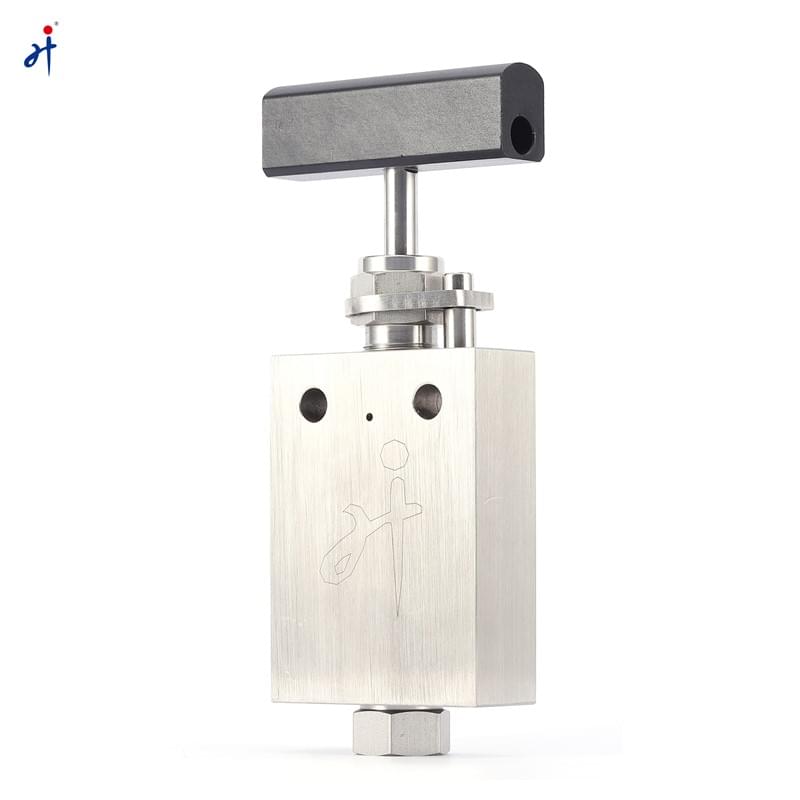

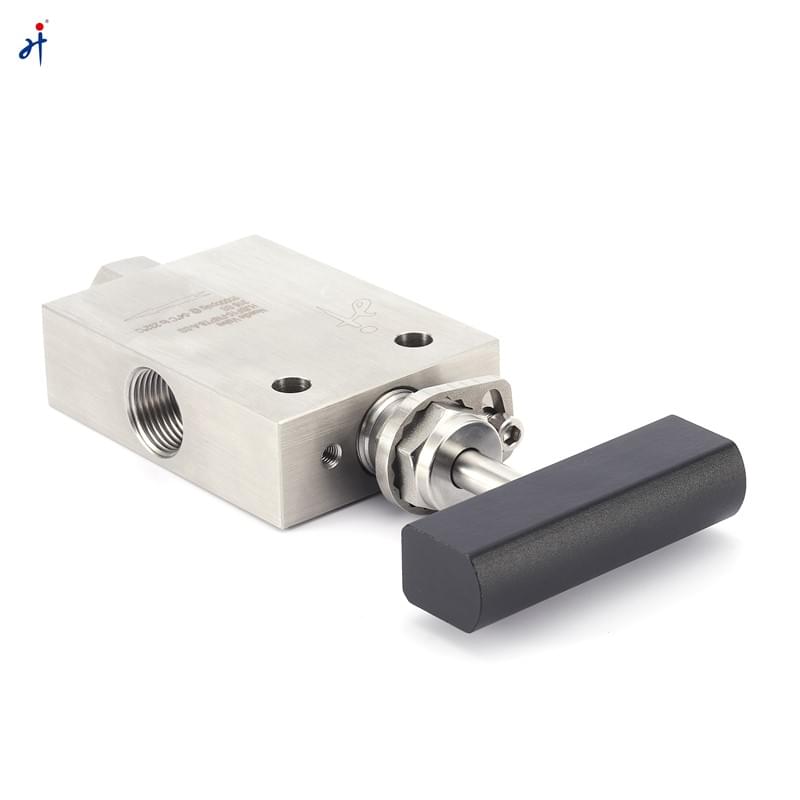

Anhui Hongji (Valvento) 1/2” 60000psi High Pressure Needle Valve Angle Type with Female NPT is a type of valves designed to control the flow of fluids (liquids or gases) in systems that operate at extremely high pressures-typically above 10,000 psi (690 bar) and can go up to 60,000 psi (4137 bar) or more, depending on the design and materials. These Valvento 60000psi needle valve angle type are commonly used in industries where precise flow control under high pressure is critical, such as oil and gas, chemical processing, aerospace, and other high-performance applications.
Applications:
Advantages:
- 1. Non-rotating stem Design to minimize the abrasion
- 2. Redesigned lock head to secure the locking gland
- 3. 100% pneumatic test at 1.5 times the design pressure before packing
- 4. Customized forged stainless steel raw material with the special elemental proportional compound to extend the life cycle
- 5. Doosan, Citizen, Okuma Lathe ensures maximum machining precision
Remarks:
The order number above indicates specific port size and type and other perimeters, and can not be randomly combined, please refer to our sales support for more technical details or the catalog if needed.
