Specification:
| Type | Column End Fittings | Net Weight | 0.1kg |
| Body Material | Stainless steel, alloy, etc. | Manufacturing Capacity | 4000 pics/Month |
| Type of Connection | Ferrule | Warranty | 1 year |
| Connection 1 Dimensions | 1/4 | Connection 1 Type | Ferrule |
| Connection 2 Dimensions | 1/16 | Connection 2 Type | Ferrule |
Anhui Hongji (Valvento) Fittings

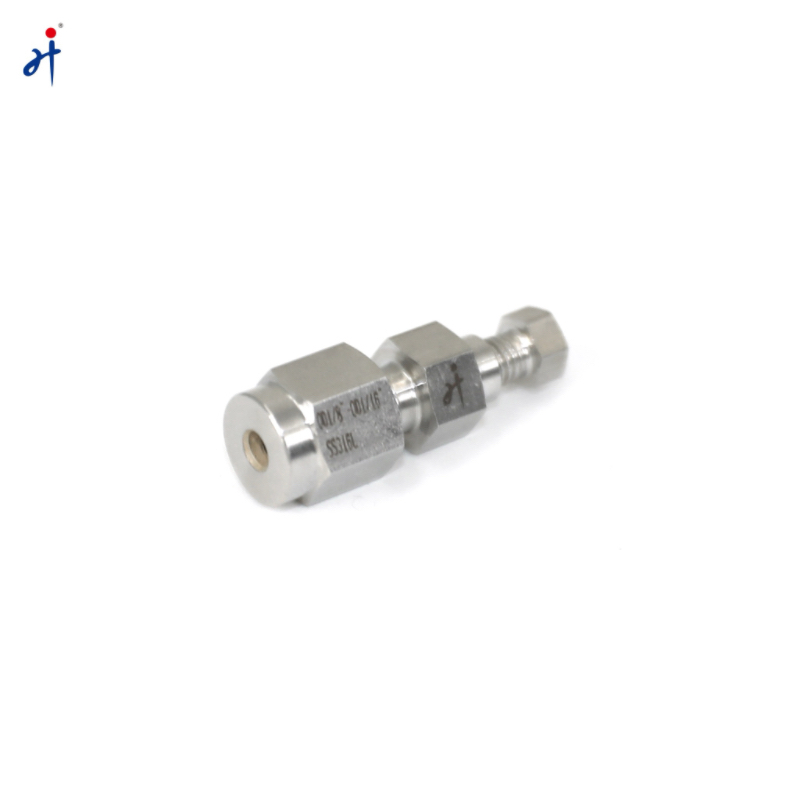

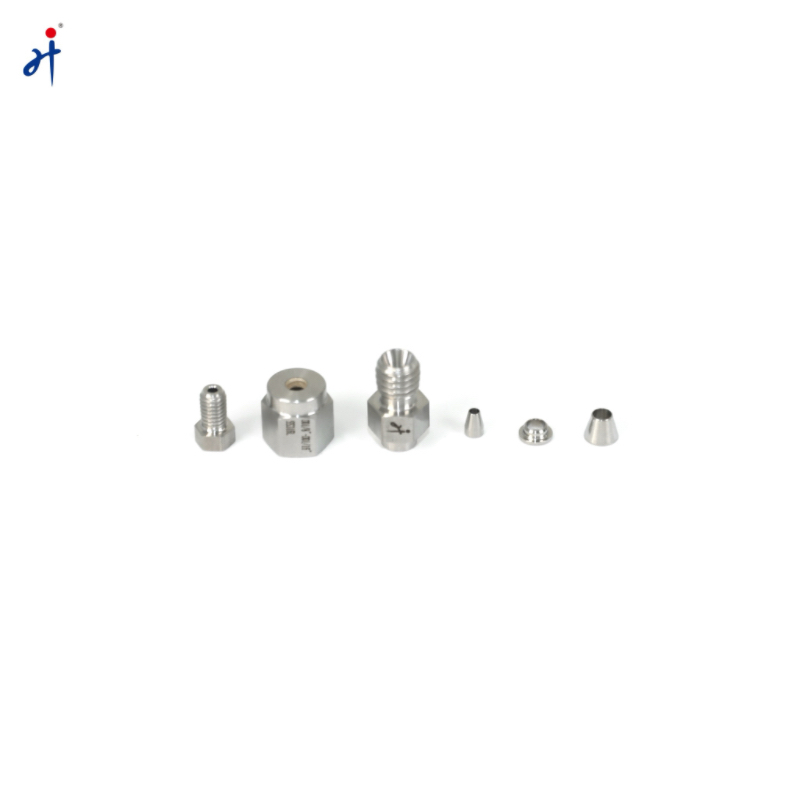

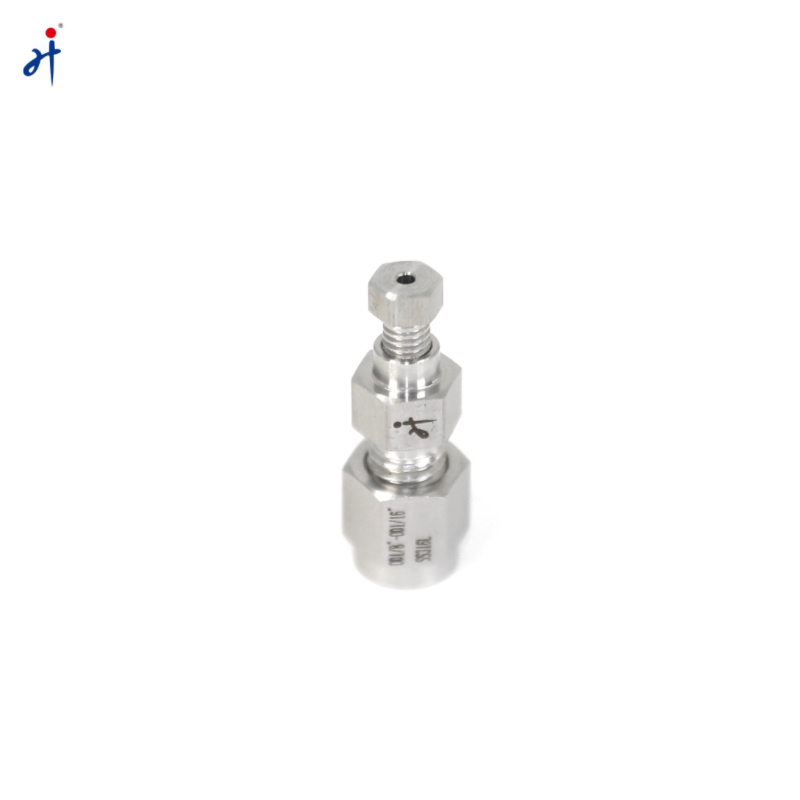

The design of Column End Fittings incorporates Hongji’s unique technology, ensuring safe, reliable sealing while also offering convenient installation and disassembly. They are often used in high-pressure and high-temperature environments, such as in the chemical, petroleum, and natural gas industries.
Applications:
- HPLC – Connect columns to injectors/detectors.
- UHPLC – Handle high-pressure connections.
- GC – Link columns to inlets/detectors.
- IC – Connect ion exchange columns.
- Preparative Chromatography – Support large-scale separations.
- Lab Research – Custom system setups.
- Industrial Process Control – Ensure reliable online monitoring
Ordering Number Description:
Note:
- P1, P2, P3 and P4 shall be described in the following orders:
- Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others
- Describe in descending order as per size if the end connection types are the same
- Describe the end of P1 if all end connections are the same
Remarks:
The order number above indicates specific port size and type and other perimeters, and can not be randomly combined, please refer to our sales support for more technical details or the catalog if needed.
