Specification:
| Type | Reducer Elbows | Net Weight | 0.1kg |
| Body Material | Stainless steel, alloy, etc. | Manufacturing Capacity | 4000 pics/Month |
| Type of Connection | Ferrule | Warranty | 1 year |
| Connection 1 Dimensions | 12mm | Connection 1 Type | Ferrule |
| Connection 2 Dimensions | 12mm | Connection 2 Type | Tube |
Anhui Hongji (Valvento) Fittings

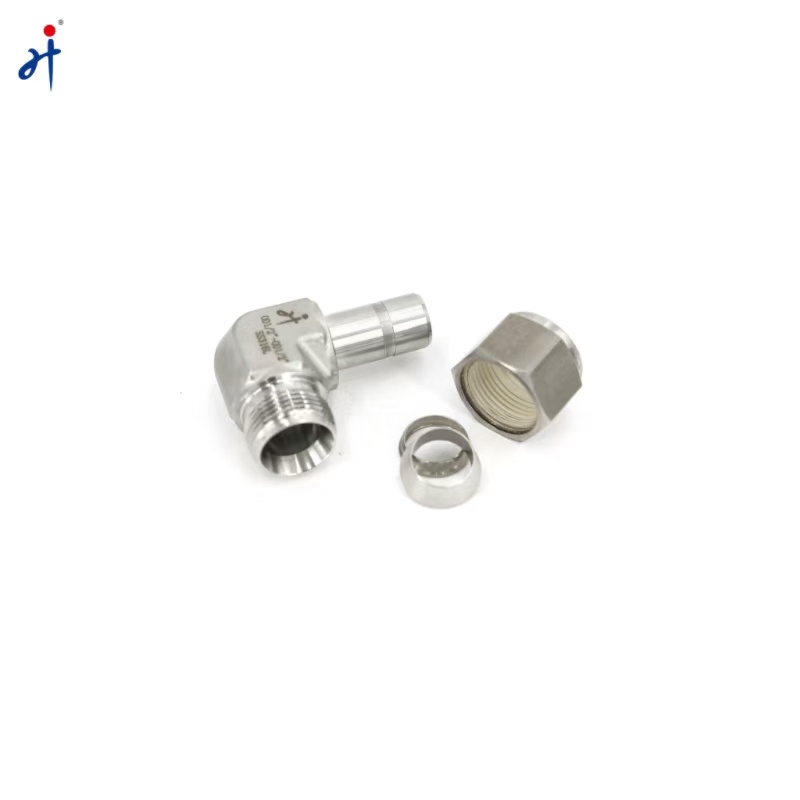

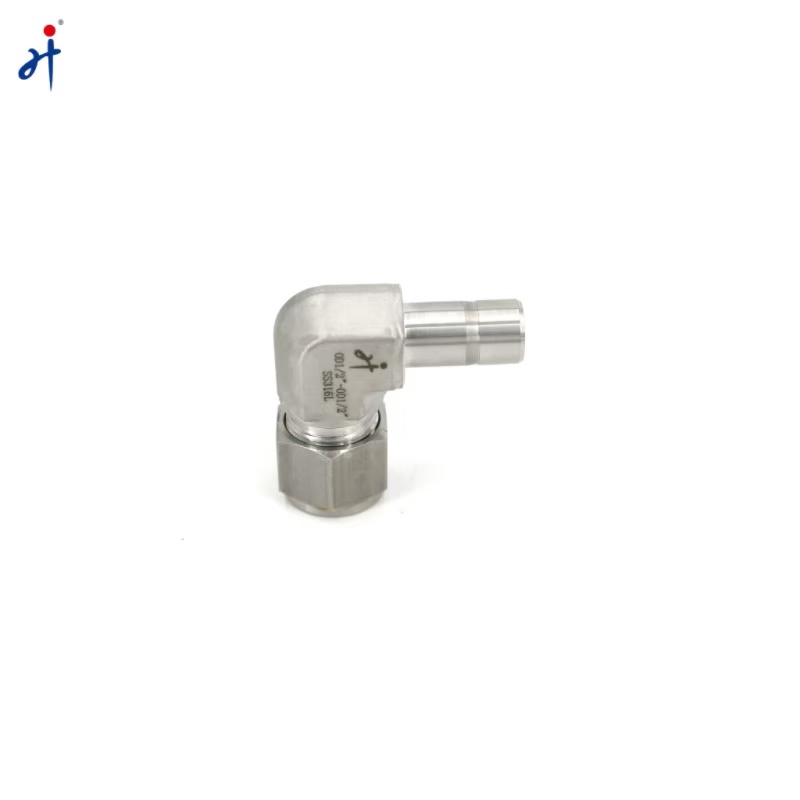

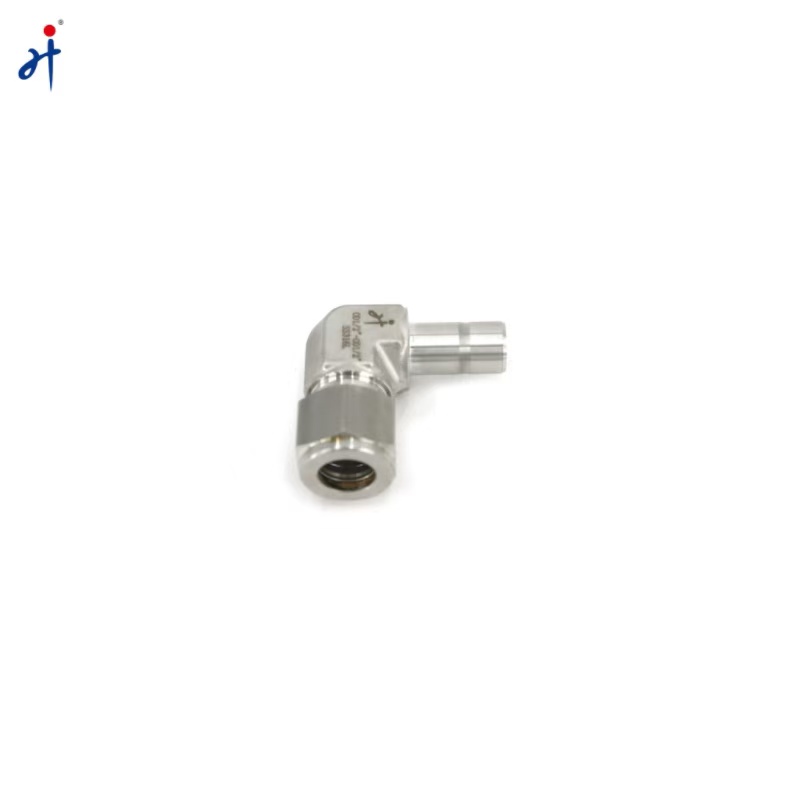

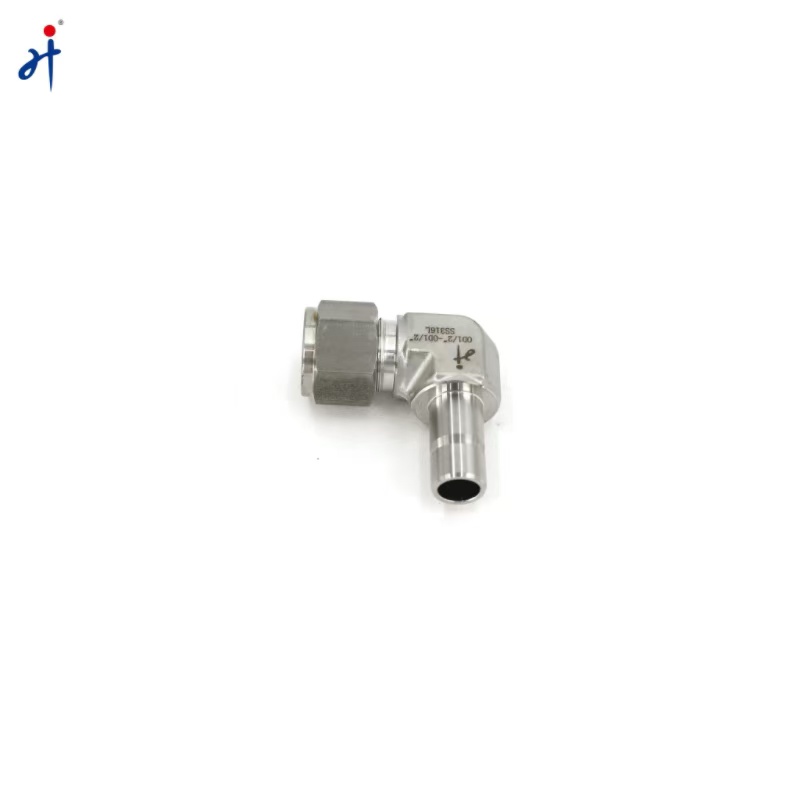

Reducer Elbows commonly used in piping systems to connect two pipes of different sizes. It features two ends with different diameters, allowing for the transition between pipes of varying sizes while maintaining a secure and leak-proof connection. These fittings are typically used when a system requires the use of smaller or larger pipes without compromising the overall flow and pressure.
Applications:
- Fluid and Gas Systems : Connecting pipes of different sizes in fluid and gas distribution systems.
- Water Treatment Plants : Used to adjust the pipe sizes while maintaining flow efficiency in treatment processes.
- Chemical Processing : Provides flexible connections for pipes carrying different chemicals of various diameters.
- HVAC Systems : Allows seamless integration of different pipe sizes in heating, ventilation, and air conditioning systems.
- Oil and Gas Pipelines : Useful in pipelines where diameter changes are necessary without disrupting flow or pressure.
Ordering Number Description:
Note:
- P1, P2, P3 and P4 shall be described in the following orders:
- Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others
- Describe in descending order as per size if the end connection types are the same
- Describe the end of P1 if all end connections are the same
Remarks:
The order number above indicates specific port size and type and other perimeters, and can not be randomly combined, please refer to our sales support for more technical details or the catalog if needed.
