Name: Screwed Bonnet Needle Valves-Socket Weld Type
Availability: InStock

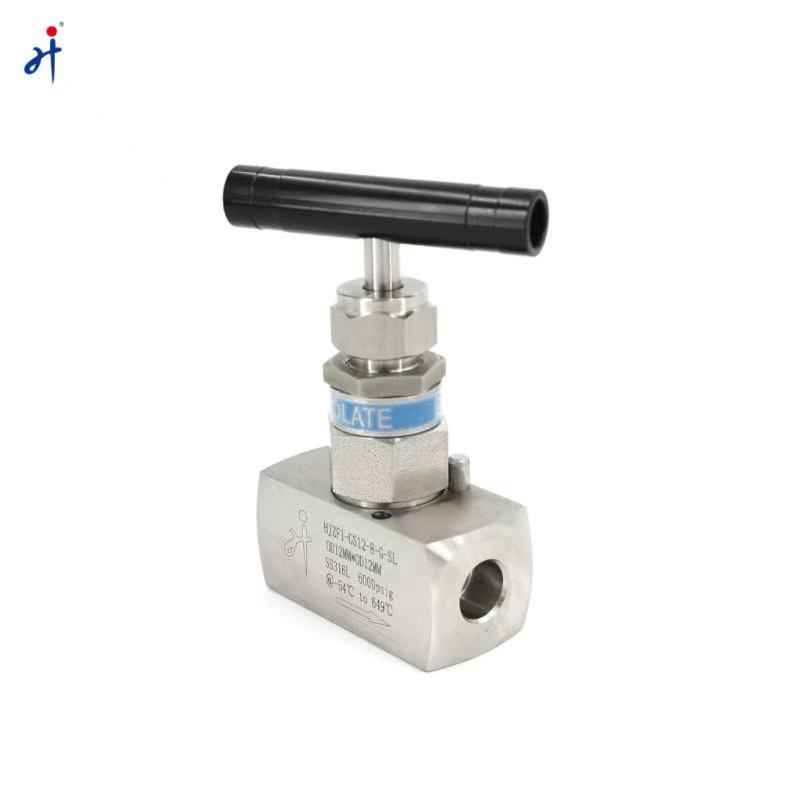

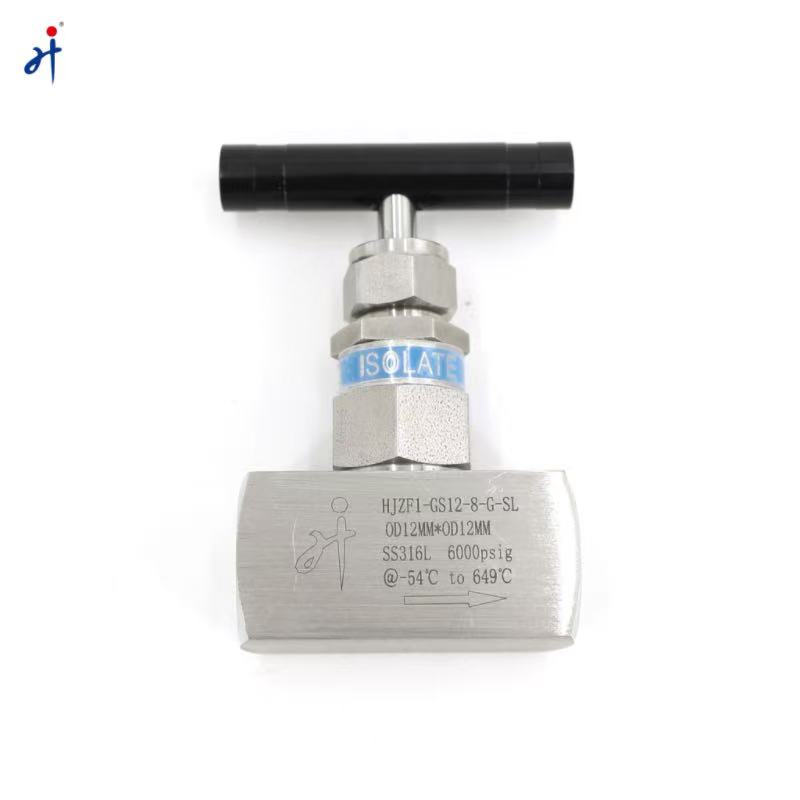

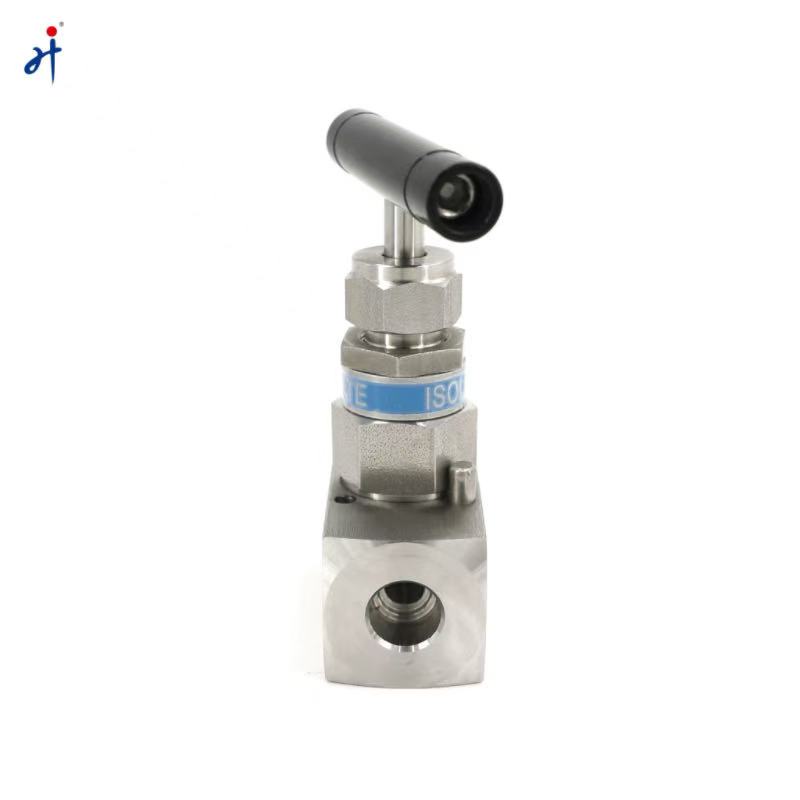

Screwed Bonnet Needle Valves-Socket Weld Type

The Screwed Bonnet Socket Weld Needle Valve is a high-integrity shut-off valve featuring a threaded bonnet-to-body construction and socket weld end connections.
It is designed for high-pressure and high-temperature service, providing precise flow control and a secure, permanent weld connection in instrumentation or process systems.

Typical Type Of Needle Valve:

a. Straight Type Needle Valve: Inlet and outlet ports are inline (180°).

b. Angle Type Needle Valve: Inlet and outlet at 90°.

c. T-Pattern (Globe Type): Flow turns 90° internally with top-mounted stem.

d. Cross Type Needle Valve: Four ports (two inlet/outlet pairs).

Working Pressure :
6000Psi – 10000Psi(414 Bar – 690 Bar)
Working Temperatures :
PTFE packing: -65 °F to 450 °F (-54 °C to 232 °C)
Graphite packing :
-65 °F to 1200 °F (-54 °C to 649 °C)
Connection :
Pressure Gauge, Tube, System.
Tip :
SS316, HC, Ceramic, Alloy(Optional)
Port :
Thread, Ferrule, Weld.

Specification:

Type	Needle Valve with Weld Connection	Net Weight	0.49kg
Body Material	316, Alloy	Manufacturing Capacity	4000 pics/Month
Type of Connection	Tube Socket Weld	Warranty	1 year
Seal Type	Hard Sealing	Manufacturing	Forging and CNC
Packing	PTFE/ Graphite	Pressure Range	6000Psi – 10000Psi(414 Bar – 690 Bar)
Media	Liquid, Gas, Steam, Oil	Port Size	12mm Tube Fitting
Graphite	-65 °F to 1200 °F (-54 °C to 649 °C)	PTFE	-65 °F to 450 °F (-54 °C to 232 °C)

Anhui Hongji (Valvento) Needle Valves

The screwed bonnet needle valves socket weld type are types of valves used for precise flow control of liquids or gases in a system. It is designed with a long, tapered needle-like plunger that fits into a similarly shaped seat. The valve’s construction allows for very fine adjustments to the flow, making it ideal for applications where precise control is needed.

Applications:

• Flow Regulation : screwed bonnet needle valves union weld type used in systems where the flow needs to be controlled very precisely, such as in gas or liquid pipelines.

• Testing and Calibration : Frequently used in instrumentation, laboratories, and process control applications to calibrate equipment and regulate test fluids.

• Gas and Liquid Distribution : Hongji Needle valves are common in gas and liquid distribution systems, including those in pharmaceuticals, food and beverage, and oil and gas industries.

• Pressure Control : Often used for controlling the pressure and flow of sensitive or hazardous fluids in applications like fuel systems, high-pressure systems, or critical fluid handling systems.

Ordering Number Description:

未标题 2 12 拷贝 scaled

Note:1. Standard thread pitch for metric threads are as follows:

M10 and below: 1 mm

M12 to M24: 1.5 mm

2. If a connection size larger than 25mm is required, or if valves of different materials are needed, please contact the Hongji sales personnel.

Remarks:

The order number above indicates specific port size and type and other perimeters, and can not be randomly combined, please refer to our sales support for more technical details or the catalog if needed.
