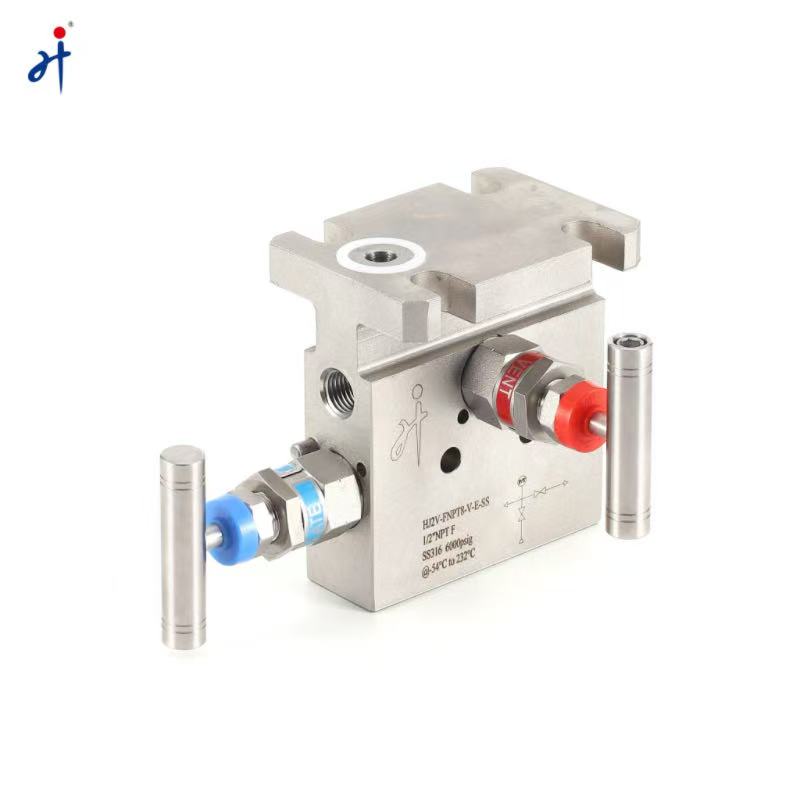

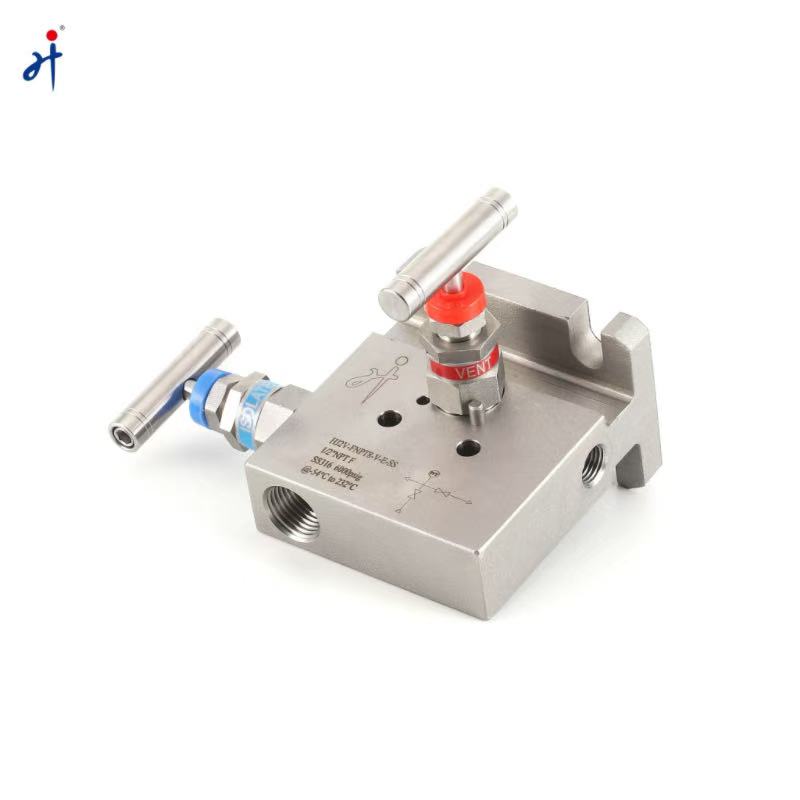

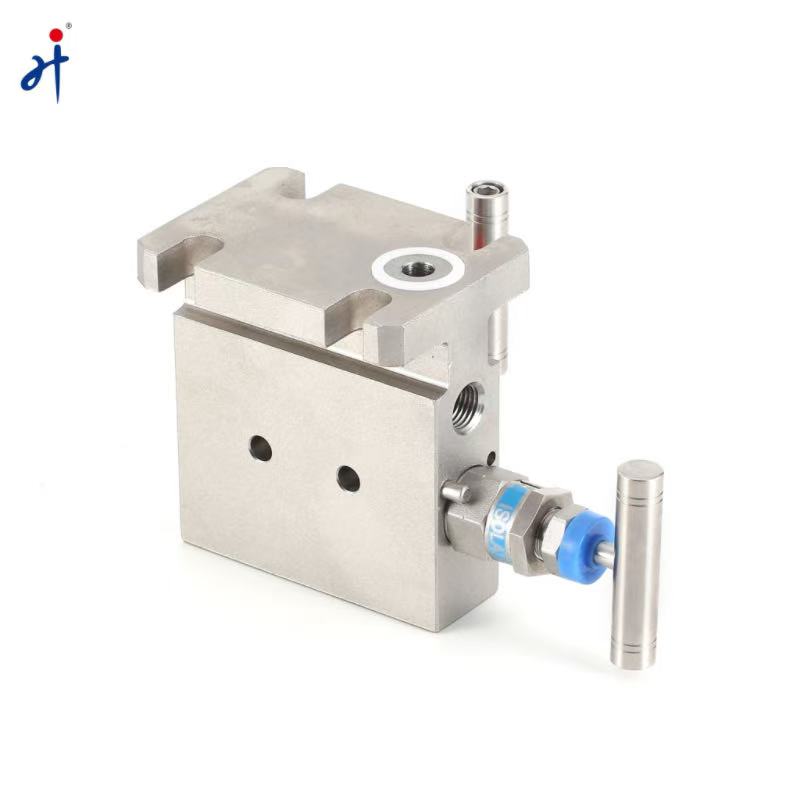

T Type Two Valve Manifold
Specification:
| Type | T Type | Net Weight | 1.5kg |
| Body Material | 316L, Alloy | Manufacturing Capacity | 1800 pics/Month |
| Type of Connection | Thread/Flange | Warranty | 1 year |
| Seal Type | Hard Sealing | Manufacturing | Forging and CNC |
| Packing | PTFE/ Graphite | Pressure Range | 6000Psi – 10000Psi(414 Bar – 690 Bar) |
| Media | Liquid, Gas, Steam, Oil | Inlet/outlet | 1/2 NPT,Flange |
| Connection | Pressure Transmitter | Orifice: | 0.157 (4.0 mm) |
| Graphite | -65 °F to 1200 °F (-54 °C to 649 °C) | PTFE | -65 °F to 450 °F (-54 °C to 232 °C) |
Anhui Hongji (Valvento)Instrumentation Valve Manifolds
T Type Two Valve Manifold made by Anhui Hongji (Valvento) combine several valves in one body with multiple connections. This equipment assists pressure instruments such as pressure gauges, pressure transmitters, and differential pressure transmitters directly and indirectly in measuring and equalizing pressures, differential pressures, static, gauge, and variable in process instrumentation lines by bleeding, blocking, and calibrating.
Applications:
1. Oil & Gas Industry
- Pressure Control : For monitoring and controlling high-pressure fluids and gases in drilling, production, and refining processes.
- Flow Measurement : To measure flow rates and manage flow in pipelines and refineries.
- Isolation & Venting : Manifold valves allow for easy isolation, draining, and venting in high-pressure systems.
2. Chemical and Petrochemical Plants
- Chemical Process Control : Used in controlling the flow of reactants, solvents, and catalysts in chemical reactors.
- Safety and Monitoring : Ensures safety in high-risk environments by controlling pressure and flow within equipment like pumps, reactors, and distillation columns.
3. Power Generation
- Steam and Water Systems : For controlling steam and water flow in power plants, particularly in high-pressure systems.
- Instrumentation : Helps in managing the signals for temperature, pressure, and flow measurement in boilers and turbines.
4. Pharmaceutical and Biotechnology
- Sterile Fluid Control : T Type Two Valve Manifold are crucial for maintaining sterile conditions and controlling fluid flow in pharmaceutical and biotech production, ensuring that processes such as fermentation and mixing are precisely controlled.
- Hygienic Isolation : Ensures hygienic isolation of different parts of the system, maintaining contamination-free operations.
5. Water Treatment and Distribution
- Flow Regulation : Manifold valves regulate the flow of water through treatment plants and distribution systems.
- Pressure Control : T Type Two Valve Manifold is used in regulating pressure in pipelines and during water treatment processes.
6. HVAC (Heating, Ventilation, and Air Conditioning)
- Temperature and Pressure Regulation : Used in controlling the flow of refrigerants and heating fluids in HVAC systems.
- Isolation and Maintenance : Ensures ease of isolation for maintenance purposes in complex HVAC systems.
7. Laboratories and Research Facilities
- Precise Fluid Management : Manifold valves are used in laboratories to precisely control the flow of gases and liquids in research experiments.
- Multi-Channel Fluid Control : Used to manage multiple fluid sources, directing them to different test systems or research equipment.
Advantages:
- Non-rotating stem Design to minimize the abrasion
- Redesigned lock head to secure the locking gland
- 100% pneumatic test at 1.5 times the design pressure before packing
- Default Tip is Hastelloy to extend the life cycle
- Doosan, Citizen, Okuma Lathe ensures maximum machining precision
Ordering Number Description:
Notes :
- Standard manifold instrument is flange (according to MSS SP-99), flange distance (center-to-center) is 2.13 (54 mm).
Distance of 2.19 (55.6 mm) suitable for transmitters of range 6, 7 and 1151.
Distance of 2.25 (57.2 mm) transmitters of range 8 and 1151.
- Ordering Number Indication illustrates the classification and combination of Hongji products, which can not be randomly combined.
- For those valves made of other type of material other than listed ,please contact the Hongji sales personnel.
- If an oxygen-dedicated valve manifold is required, include “ O2 ” in the basic order number, for example: HJ2W-MNPT8-FNPT8-H-P-SS-O2
Remarks:
The order number above indicates specific port size and type and other perimeters, and can not be randomly combined, please refer to our sales support for more technical details or the catalog if needed.
